DELL 5G WWAN Card DW5930e-eSIM T99W175 RPY3T

DELL 5G WWAN Card DW5830e-eSIM T99W175 RPY3T

DELL 5G WWAN Card DW5830e-eSIM T99W175 RPY3T is an Original DELL spare part or upgrade for your Notebook. We only recommend and supply original DELL parts that do not invalidate your existing warranty.

All spare parts supplied are brand new and guaranteed original OEM, we do not supply copies or products made by other manufacturers. Everything will carry the genuine and correct part numbers ensuring your part is correct for your laptop.

We are able to supply most country variations so if you do not see the exact part you are looking for please contact us with your requirement and we will do our best to source the required item for you.
Buy direct from the source and save yourself money, we have a huge volume of parts in stock .

If you are buying your laptop from us at the same time we are happy to fit for you free of charge!

Volume & Trade enquiries welcomed, stock changes frequently, so please contact us even if you don’t see the exact part you are looking for!

Highlights for DELL 5G WWAN Card DW5830e-eSIM T99W175 RPY3T

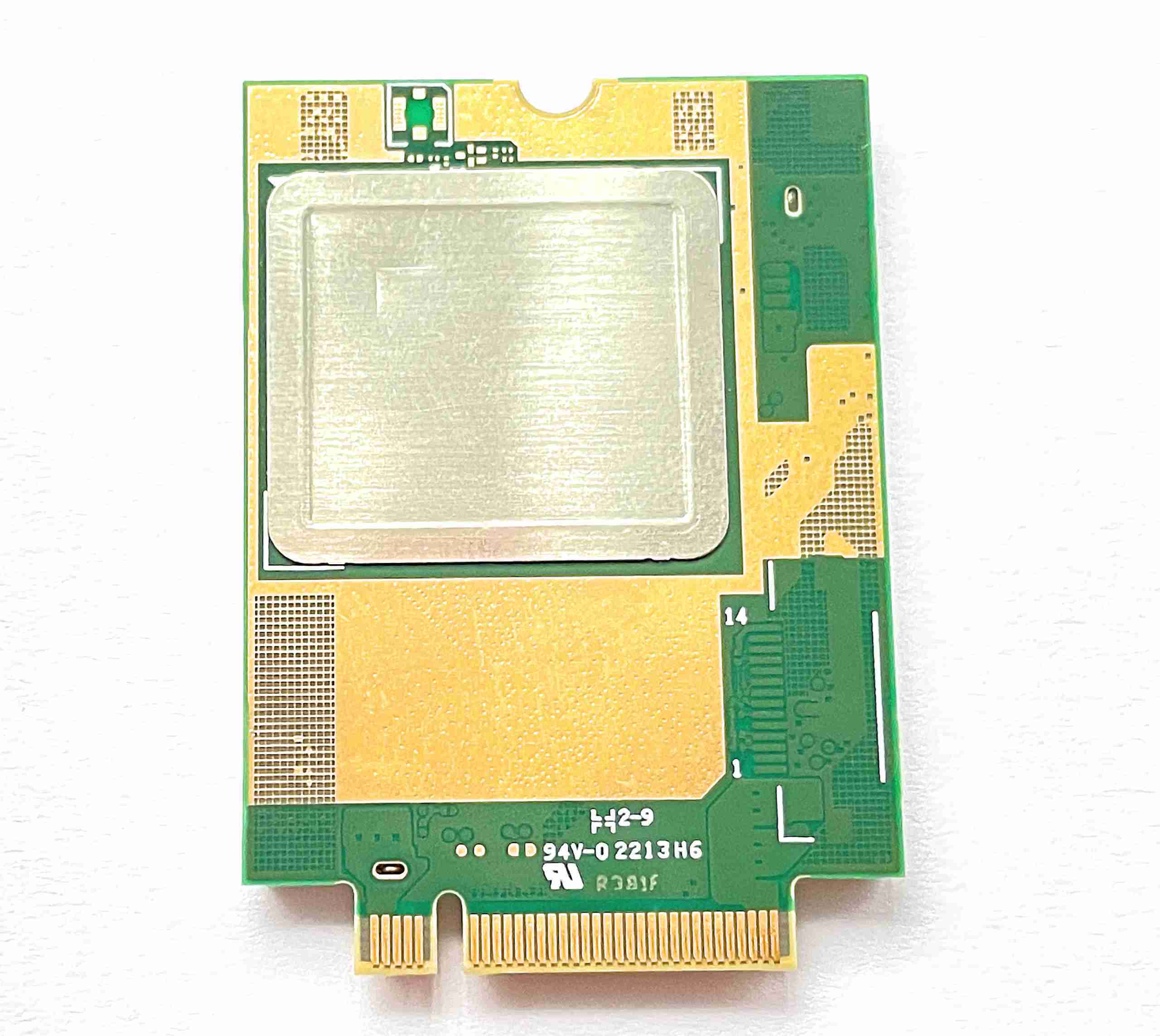

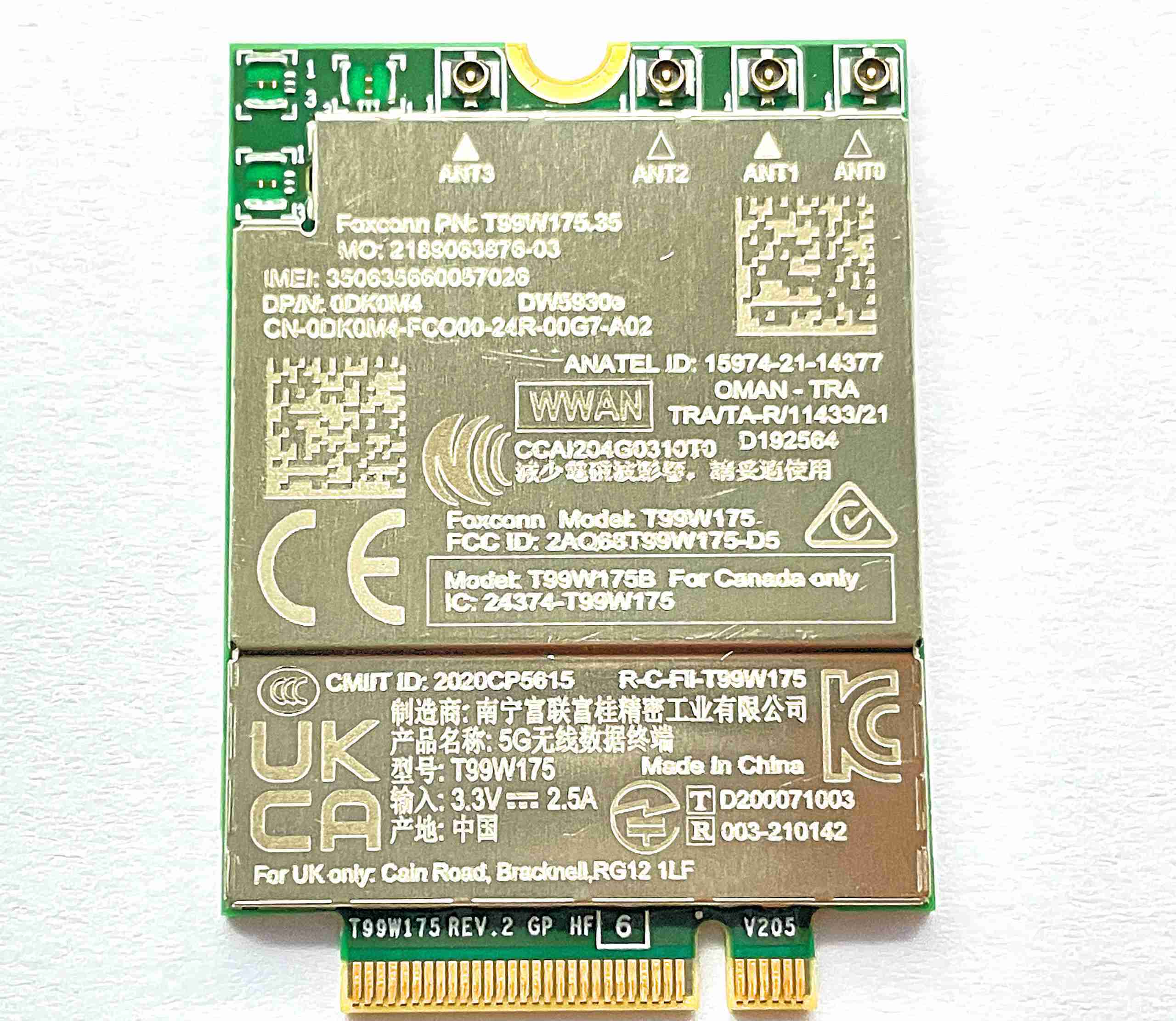

Foxconn T99W175B WWAN card is a 5G wireless module which is designed to enable wireless data connectivity for notebook computer or any other device compatible with the PCI Express M.2 Specification 3042 type Key B slot. Foxconn T99W175B module is the data card solution that delivers wireless wide-area network (WWAN) connectivity for the 5GNR (Sub 6G), LTE, UMTS (HSDPA / HSUPA / HSPA + DC-HSPA +) and GPS / Glonass / Beidou / Galileo protocols in one hardware configuration.

Compatible with Dell Rugged Extreme 7330 and Dell Rugged Latitude 5430

Foxconn T99W175B 5G Module Specifications:

* Chipset: Qualcomm Snapdragon X55

* Form factor: PCIe M.2

* Support 5G NR NSA Bands: 1, 2, 3, 5, 7, 8, 12, 20, 28, 38, 41, 66, 71, 77, 78, 79, 257, 258, 260, 261

* Support 4G LTE Bands: 1, 2, 3, 4, 5, 7, 8, 12, 13, 14, 17, 18, 19, 20, 25, 26, 28, 29, 30, 32, 34, 38, 39, 40, 41, 42, 46, 48, 66, 71

* Support LTE 4×4 Bands: 1, 2, 3, 4, 7, 25, 30, 38, 39, 40, 41, 42, 48, 66

* LTE DL/UL Modulation: 256QAM / 64QAM

* UE-Category UL 13 (UL: 150Mbps) + UE-Category DL 20 (DL: 2Gbps);

* 7xDL CA, 3xUL CA (Intra-band), 5xDL CA+4X4 MIMO (Up to Cat.20)

* LTE Max Speed (DL/UL) : 2000/150 Mbps

* WCDMA Cat: HSPA+ Rel8 (DL/UL: 42/11 Mbps)

* GNSS Dual-Frequency GNSS: L1:GPS/Glonass/Beidou/Galileo

* eSIM: Dual SIM with eSIM on board, dual standby and single active

* Interface: USB3, PCIe3

* Operation Temperature: -30 ° C ~ + 70 ° C

* Dimension: 42mm x 30mm x 2.65mm(L x W x H)

* Weight (g): 8g

Compatibility

• Latitude 7440 7430
• Don’t work with the Rugged model
